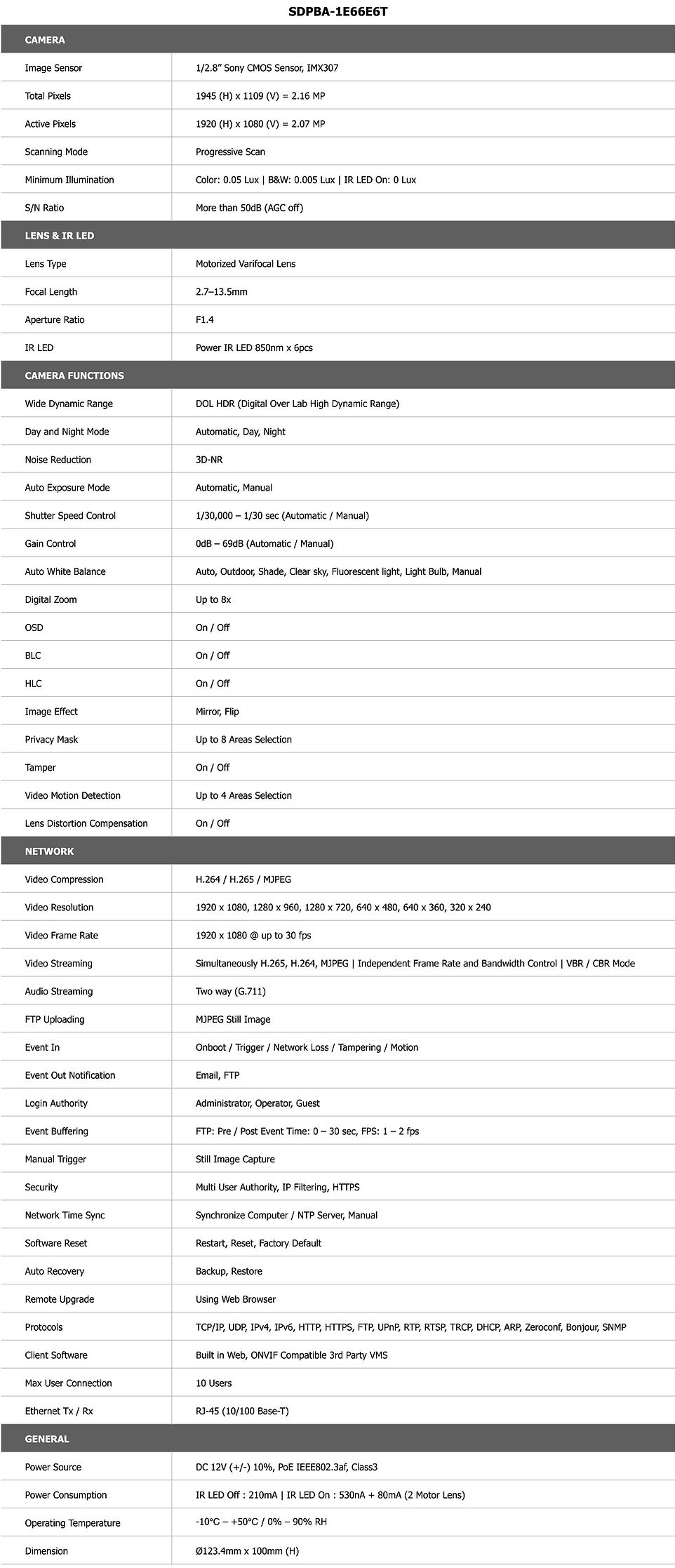

SDPBA-1E66E6T
CAMERA TYPE
IP INDOOR DOME Camera
HOUSING
Plastic
SENSOR
1/2.8" Sony STARVIS CMOS Sensor (IMX307)
LENS TYPE
2.7mm ~ 12mm (F1.4) Motorized Lens
IR LED
POWER IR LED X 6pcs
POWER CONSUMPTION
IR LED Off : 210mA
IR LED On : 530mA + 80mA (2 Motor Lens)
POWER SOURCE
DC12V (+/-) 10%, PoE IEEE802.3af, Class3
-
Easy Installation with NVR
-
1/2.8" Sony STARVIS CMOS Sensor
-
Progressive Scan
-
Effective Pixels : 1945 (H) X 1109 (V) = 2.16 Megapixel
-
Full HD 1080P / HD720P 30fps Resolution
-
IP NETWORK - Video Output
-
2.7mm ~ 12mm Motorized Lens
-
3DNR / DOL True-WDR
-
DC12V, PoE - Power Source
-
6pcs X POWER IR LED
-
Audio In / Out
-
Supports ONVIF

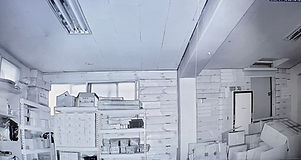

POWER IR LED
These Power IR LED gives a clear night vision.
The specification of LED is 850nm and gives 90 degree.
S&M Technology's POWER IR LED
Normal IR LED
